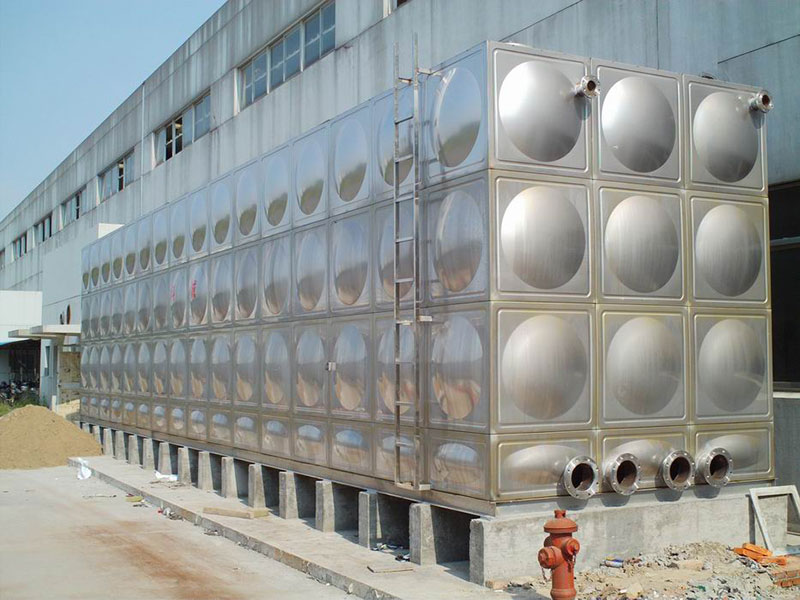

Square (Modular) Stainless Steel Tank

Assemble Type · Modular Design · Flexible Sizing

Precision Manufacturing

Our square tanks are formed using precision hydraulic stamping dies that produce unit rectangular concave-convex tank panels with exceptional forming accuracy. The stainless steel material surface remains smooth and flawless after stamping, ensuring both aesthetic appeal and hygienic performance.

Wide Applications

These modular tanks are widely used for cold and hot water storage in hotels, apartments, high-rise buildings, and industrial facilities. The bolted assembly design allows for easy transportation and on-site installation, even in locations with limited access.

Optional Insulation — Polyurethane Foam

Our polyurethane integral foaming insulation is a high-performance polymer produced by mixing isocyanate and polyether as main raw materials, combined with blowing agents, catalysts, flame retardants, and other additives. The mixture is processed through specialized equipment and applied via high-pressure spray for on-site foaming.

• ✓ High efficiency & energy saving
• ✓ Seamless filling — no gaps or voids
• ✓ Strong adhesion after curing
• ✓ Ultra-low thermal conductivity
• ✓ Excellent weather resistance & insulation

Key Features

• ✓ Precision hydraulic stamped panels
• ✓ High forming accuracy
• ✓ Smooth stainless steel surface
• ✓ Modular design — any size available
• ✓ Food-grade EPDM sealing strips
• ✓ Capacities from 1m³ to 2,000m³+

Specifications

Material	SUS304 or SUS316L (Grade A, food-grade)
Panel Forming	Precision hydraulic stamping with dedicated molds
Panel Size	1000×1000mm / 1000×500mm / 500×500mm (concave-convex design)
Capacity Range	1 m³ — 2,000+ m³ (custom sizes available)
Plate Thickness	Bottom: 2.5mm / Side: 1.5-2.5mm / Top: 1.0-1.5mm
Seal Material	Food-grade EPDM rubber
Insulation (Optional)	Polyurethane integral foaming — ultra-low thermal conductivity, seamless bonding
